1970 Dodge Dart Restoration
& Race Car Project

Fuel - Electrical - Fire Suppression





Fuel Cell Mock Up
I decided to scrap the idea of placing the fuel cell's mounting tabs on blocks and mounted the cell directly to the floor as can be seen in the next photo.
Fuel Cell Mounted to Floor
Fuel cell mounted to floor with cutout for sump.
Fuel cell sump
Fuel Cell sump

Pro Systems Dominator Carburator
Pro Systems Dominator Carburator

Dominator carb - Earls hose and Auto Fit fittings
Under hood Plumbing
Jegs throttle bracket for Dominator 4500
Jegs throttle cable bracket - Lokar cable
Canton Accumsump
Canton Accusump

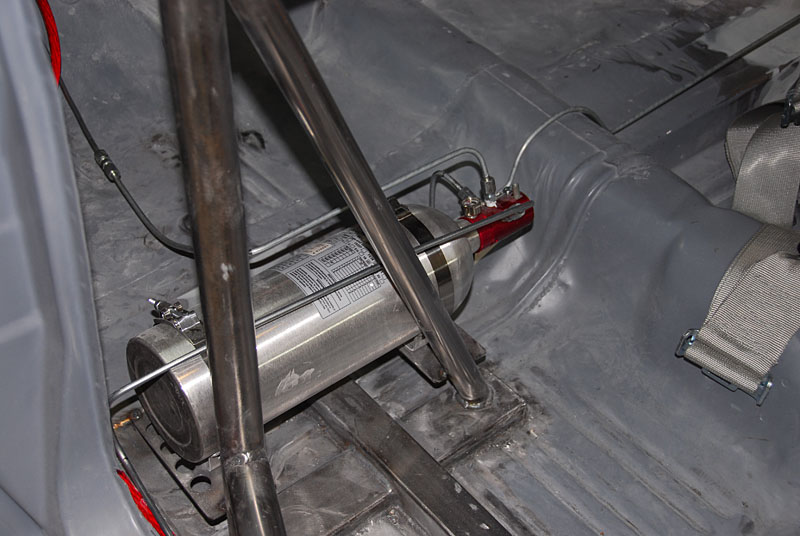

Safecraft fire suppression
Safecraft Fire Suppression System
Aluminum catch can
Aluminum catch can

System plumbed
Nozzle for fuel cell Under hood nozzle
Battery cut off switch Battery cut off switch  Dodge Dart Fuel Cell Magnafuel Pump
Dodge Dart Dominator Carb Magnafuel Regulator
