Leaf Spring Relocation

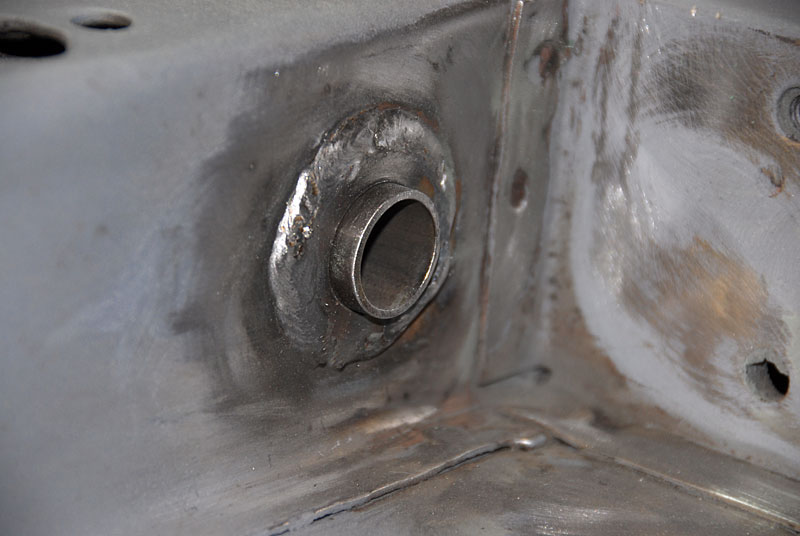

I used the Mopar spring relocation kit and added a few reinforcements which include a welded washer around the shackle mount and  plating around the leaf spring mounting holes. I also made a torque box out of plate steel and boxed in the inside edge of the spring box.







 Home made torque box.
